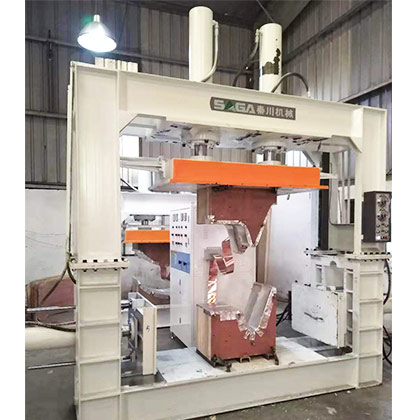

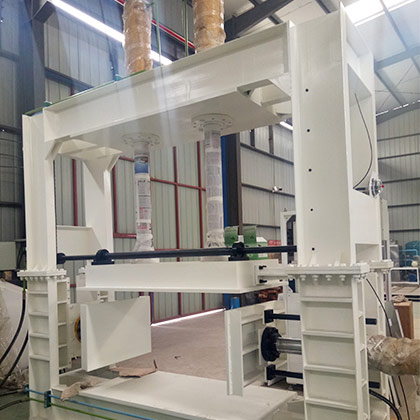

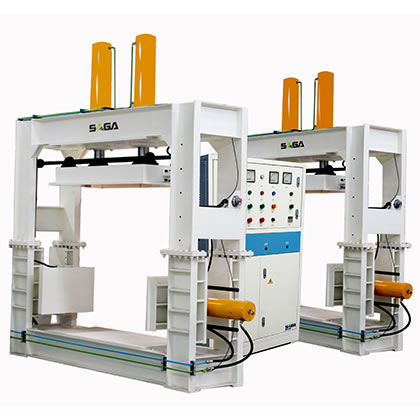

High Frequency Curved Bending Press

Brand Name: SAGA
Model Number: YX8060-SA
Place of Origin: China
Minimum Order Quantity: 1set
Delivery Time: 40 Days
Payment Terms: TT/LC
Supply Ability: 200 Set per year
Packaging Details: Seaworthy packing

High frequency curved plywood press applies high frequency generator to hydraulic press, by mold and electro, it transfers the high frequency power to the work piece to achieve the function of fast gluing and forming. It’s suitable for BENT PLYWOOD CHAIR, BENT OR ARC PLYWOOD FOR THE FURNITURE OR BED or other bent plywood products like CLOTH HANGER OR SURFACE OF MUSICAL INSTRUMENT.

1.Character of High Frequency Curved Plywood Press

A.Fast and uniformly heating
B.Bending shape is stable, not easy to change de-lamination.
C.High frequency power is a selectively heatig power, it concentrates only on water or glue. wood cannot consume high frequency power, so it is effective and power saving.
D.Wooden or MDF mold used, much economic than metal mold if shape is frequently changed.

Power 380V, 3Phase, 4Wire,50Hz
Total hydraulic pressure 140 ton
Vertical hydraulic pressure 80 ton

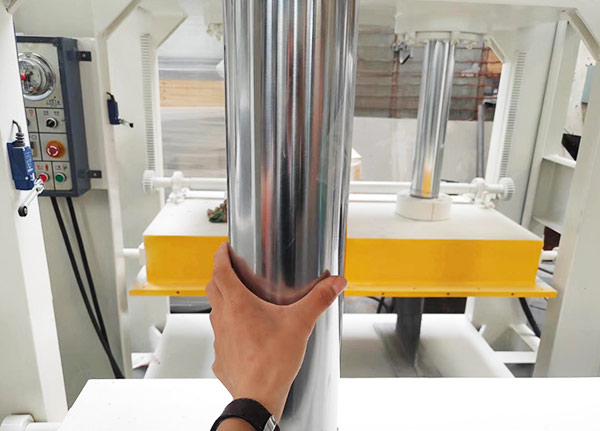

Quantity of vertical hydraulic cylinders 2 pieces
Horizontal hydraulic pressure 60 ton
Quantity of horizontal hydraulic cylinders 2 pieces
Working size 1600*800mm
Opening between up and down platen 1735mm
Vertical Hydraulic cylinder stroke 900mm
Opening between left and right platen 1790mm
Horizontal Hydraulic cylinder stroke 500mm

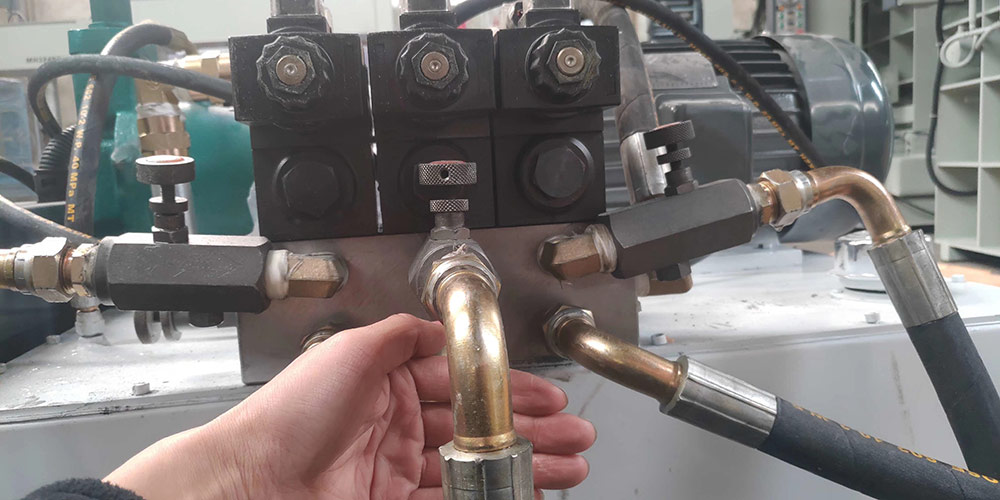

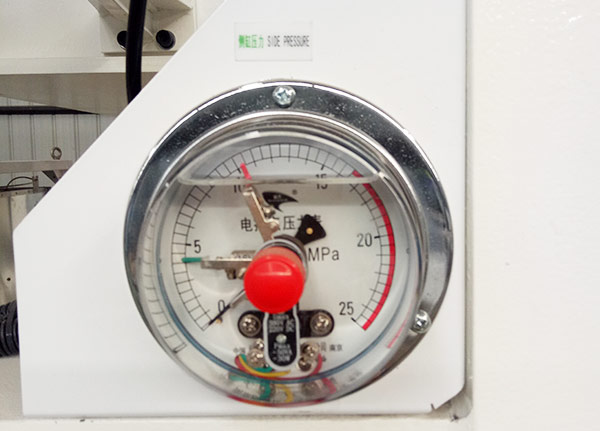

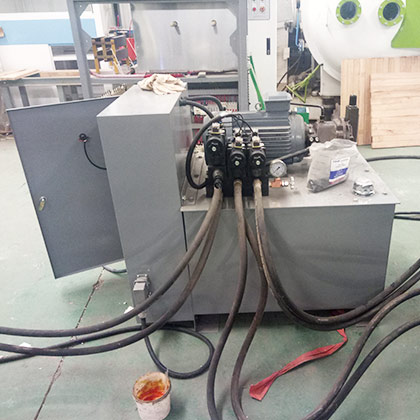

Hydraulic system rated pressure 25Mpa
Overall size (L*W*H) 3900*900*3730mm
Weight 6000kgs
